WL-2000CAM |
| |
Cámara IP multi-perfil inalámbrico-G con sensor auto luminac |
|
|
 |
 |
|
 |
Cámara IP multi-perfil inalámbrico-G con sensor auto luminación |
|
 |
|
|
2.5/3G Visión en directa desde el teléfono móvil |
|
|
|
|
Soporta dos canales de audio con mic integrado |
|
|
|
|
Movimiento simultáneo Jepg & MPEG4 Canal Dual |
|
|
|
|
Excelente calidad de imágen resolución hasta 30FPS |
|
|
|
|
 |
|
|
|
|
|
 |
 he WL-2000CAM is an IP camera designed for high-level video imaging experience that generates MPEG-4 and M-JPEG streaming. With auto light sensor, its automatic night mode offers superior low light performance. It offers support for UPnP which makes seamless device connection and easy installation. |
|
| |
| Full Function Wireless Camera |

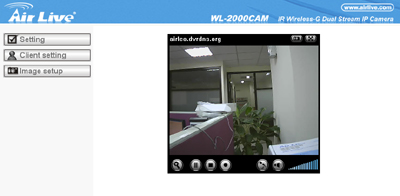

| AirLive Wireless IP Cameras are designed for Home or Enterprise customers who demand performance with the latest technologies for mobility and functionality. It features simple plug-and-play installation and easy wireless operation that allows it to be placed anywhere effortlessly. The web-based configuration allows viewing the image from the Internet and various security functions such as video recording to a TFTP server. The 802.11g standard allows the camera to operate at 30 FPS and up to 640x480 VGA resolution. The 802.11g models add WPA support for even more secure data encryption. |
|
| |
| Motion JPEG & MPEG-4 Compression Format |
| The WL-2000CAM is an advanced wireless IP camera with Motion JPEG and MPEG-4 capabilities. Using automatic light adjustment, Motion JPEG and MPEG-4 dual output stream allows for good compression performance with low bit rates and bandwidth requirements. |
|
| |
| Versatile Application |
| This auto light sensor IP camera comes equipped with many advanced features suitable for all types of applications. The camera supports FTP, TCP/IP, SMTP, HTTP and many other Internetrelated protocols for remote surveillance. Motion detection with up to three sensors enables optimal performance of video detection by capturing images and sending those images for e-mail notification. With built-in auto-sensor LEDs that allow viewing objects in the dark, the WL-2000CAM constantly delivers superior image detail in any environment. |
 |
|
| |

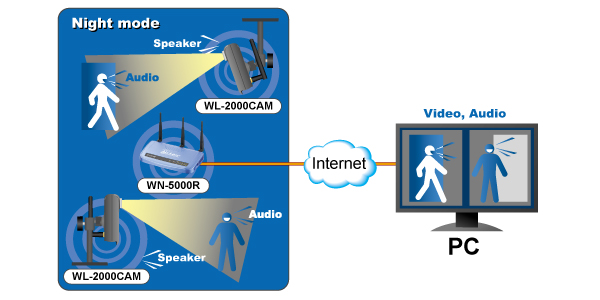

| 2-Way Audio Communication |
| The WL-2000CAM supports 2-way audio with use of the built-in microphone and separate computer speakers which allows for real-time voice communication between the camera and PC. |
 |
|
| |

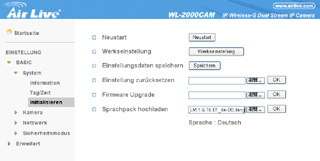

| Language Pack Feature |
| This camera also comes with upgradeable device language pack offering seven different languages for user-friendly operation. These languages include Chinese, German, Spanish, Japanese, and more. |
 |
|
| |
| View from Mobile Phone |
| The RSTP protocol feature allows 3G and 2.5G mobile phones to display captured images from the camera for live video surveillance from a remote location. With automatic light adjustment that eliminates bit rate problems caused by poor night time performance, WL-2000CAM is the perfect answer to remotely monitoring your house while out traveling. |
 |
|
| |
| View Your Camera from Windows Live Messenger |
Say goodbye to tedious and troublesome configurations or hard to remember IP addresses. AirLive Network Surveillance now works with Windows Live Messenger so you just need your Live Messenger account to access all the IP cameras you had installed. You can use Windows Live messenger to remotely monitoring your properties while you are away. Live video feeds of the IP Camera can be displayed using Windows Live Messenger, while providing its public IP address to users for access via the web browser. This feature is useful especially when the IP address of the camera is dynamically assigned.
* Windows Live Messenger function support WL-2000CAM,OD-300CAM,WL-2600CAM,POE-100CAMv2,POE-200CAMv2,POE-260CAM |
|
| |
| Professional Surveillance Software Supported |
| WL-2000CAM also supports CamPro Express, the bundle surveillance software that lets user to view and record multiple live images at the same time. Using several WL-2000CAM s with CamPro Express, user can easily build up a surveillance system at different environment. |
 |
|
|

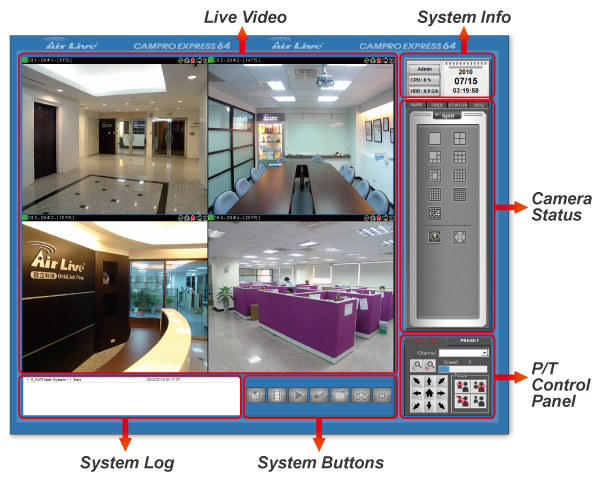

| Web Monitor |

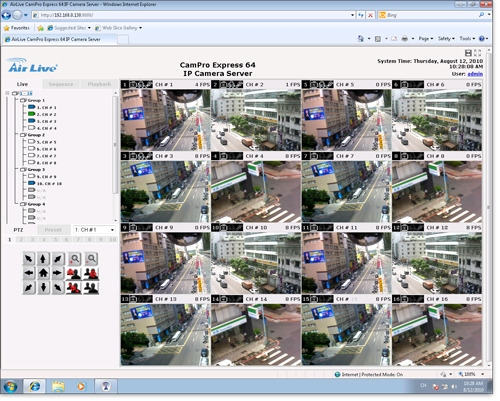

| The CamPro Express allows you to monitor 64 channels via the computer and WEB UI. You can also choose to view the different camera in single view or 1/4/9/16/32/64 view. |
 |
|
 Modelos |
 AirLive WL-2000CAM
|
| Sensor de imágen |
1/4" Sensor CMOS progresiva |
| Zoom |
10x Digital
|
| Mínima iluminación |
0 Luz a F2.0 con visión nocturna LED encendido |
| Video compresión |
JPEG & MPEG-4 movimiento |
| Máx resolución |
640 x 480(VGA) |
| Rata del marco |
JPEG movimiento: a 30 fps en todas las resoluciones
MPEG-4: hasta 30 fps en todas las resoluciones |
| Streaming de video |
JPEG y MPEG-4 en movimiento simultáneo
Rata del marco controlable y banda ancha
Compatible con 3GPP/ISMA RTSP |
| Audio |
Doble dirección (full duplex) micrófono integrado |
Administración de alarma y
eventos |
Detección de multi-window en movimiento
Carga de imágenes sobre FTP, e-mail y HTTP
Notificación sobre TCP y e-mail |
| Conectores |
Ethernet RJ-45, audio line out |
| Procesadores y memoria |
ARM9 based 32-bit RISC CPU 32MB RAM, 4MB Flash |
| Sistema de operación |
Linux 2.4 |
| Alimentación de corriente |
5V DC,max 4.5 W |
Condiciones de operación
|
10-40 °C (50-104 °F) Humedad 20-80% RH (sin condensación) |
Mínimos requerimientos del
sistema |
Pentium III CPU 500 MHz o mejor, o un equivalente AMD 128MB RAM Windows 98,ME,2000,XP,Vista Internet Explorer 6 o mejor |
Soporta protocolos
|
TCP/IP, DHCP, PPPoE, ARP, ICMP, FTP, SMTP, DNS, NTP, UPnP, RTSP, RTP, HTTP,TCP, UDP, 3GPP/ISMA RTSP |
Viewing Angle
|
48°27' (H)
37°17' (V)
58°42' (D) |
|
|
|
|
|
|
|
|
|
