WHA-5500CPE |
| |
802.11a Super Range Outdoor CPE |
|
|
 |
 |
|
 |
5GHz All-in-One Outdoor CPE |
|
 |
|
|
108Mbps Atheros Super-A/Turbo-A Support |
|
|
|
|
18dBi High Quality Patch Antenna |
|
|
|
|
New AirMax5 Extreme Firmware |
|
|
|
|
Up to 25km using Built-in Antenna |
|
|
|
|
8 Wireless Operation Modes |
|
|
|
|
4.9GHz to 6GHz Super Channel Support |
|
|
|
|
Client Mode with MAC transparency |
|
|
|
|

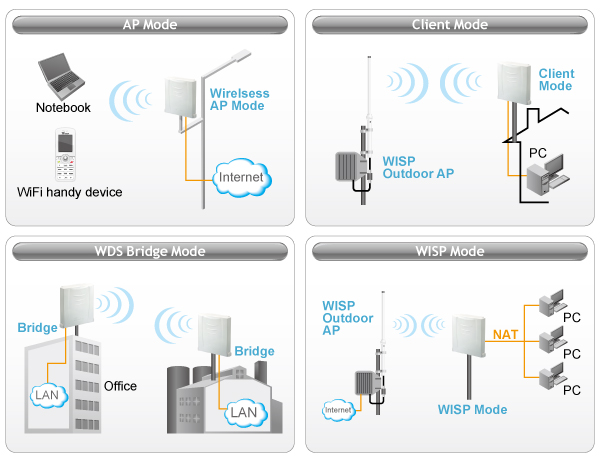

AP, WDS Bridge, AP Router, WISP Router, Repeater Modes |
|
|
|
|
Multiple SSID and VLAN function |
|
|
|
|
 |
|
|
|
|
|
|
|
| Long Distance Champion |
The WHA-5500CPE is AirLive’s flagship 5GHz all-in-one Outdoor CPE. It is designed with high
performance and long distance in mind. From the full range 18dBi built-in antenna that can deliver
up to 25km distance to the 802.3af compliant PoE kit, the CPE is built with the highest outdoor grade materials. Now, with the new AirMax5 Extreme firmware, it is also the most powerful and easy-to-use outdoor CPE. |
|
 |
| All-In-One Solution |

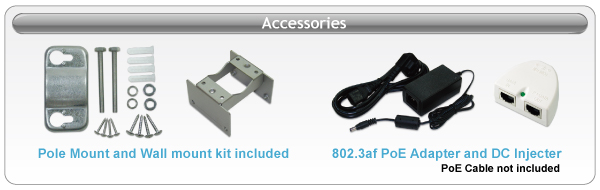

| The WHA-5500CPE comes with almost everything you need to build 5GHz connection instantly. The CPE enclosure is rain and splash proof. It includes an integrated 18dBi 5GHz antenna and 802.3af compliant Power-Over-Ethernet Kits. The only thing you need is an outdoor Cat-5 POE cable, and then you can establish long distance connection instantly. With each product is the step-by-step instruction video to help you setup the CPE quickly. Metal mounting kits for both pole mounting and wall mounting are also included. |
|
|
| 25 Kilometers Distance or More |
| With the integrated directional antenna and high performance Atheros 11a radio, the CPE can reach the distance of 25 kilometer in good weather condition. The included 802.3af Power over Ethernet adapter is capable of up to 100 meter in distance between the CPE unit to the power outlet. This makes installation very versatile and simple |
|
|
| AirMax5 Extreme Firmware |
 |

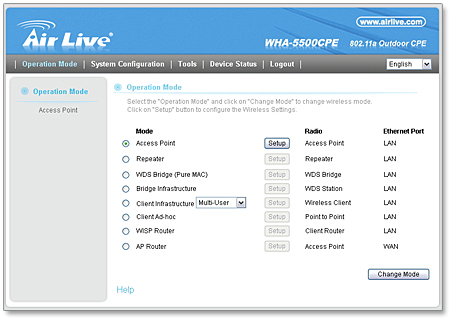

The new WHA-5500CPE firmware is based on an advance version of our popular AirMax5 firmware. The Multi-language AirLogic interface permit instant change to one of the seven languages(English, Czech, Polish, Spanish, Portuguese, German, and Croatian) from any page. The new wireless function includes variable Channel Width(40, 20, 10, 5MHz), Lock-to-AP list, Polling, HTTPS secured web management, Memory status, and 8 operation modes. The WDS Bridge mode can support up to 8 entries and let users to |
| add bridges from the Site Survey list. The firmware features so many enhancements; it completely transforms the WHA-5500CPE to one of the most advance 5GHz wireless outdoor device available. |
|
 |
|
| Super Channels Support* |
For service providers that have license to operate in the 4.9GHz or 6GHz spectrum, the WHA-
5500CPE has built-in Super Channels support. Therefore, you do not need to pay extra for software license. The WHA-5500CPE built-in full range antenna can even support those frequency spectrums thanks to its high quality design.
If you want to setup your wireless network in high performance 5 GHz spectrums. Looking no further, the WHA-5500CPE is your choice. |
|
 |
|
| 1. |
The use of Super A or Turbo A mode in some countries is not permitted. |
| 2. |

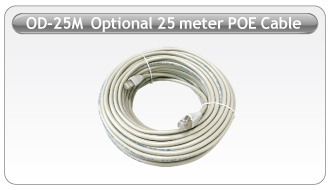

POE cable is optional |
| 3. |
The CPE should be installed in upright position for rain and splash proof. Please do not install it upside down or put it into the water. |
| 4. |
The CPE’s built-in antenna has coverage of 15.5 degree horizontal and 16.6 vertical coverage in the forward direction. |
| 5. |
Please make sure you have the license to use the Super Channels. Operating without license might be illegal in your country. |
|
|
| |
|
| Standard |
 802.11a/Super A mode support (Atheros Proprietary)
- 802.11h TPC and DFS
RoHS compliant
Supports One 10/100 Mbps LAN
Auto MDI/MDI-X support
4MB Flash, 32MB SDRAM
IEEE 802.3af (PoE) compliance up to 100 meters of CAT 5 cable length |
| Antenna |
Integrated 18 dBi patch directional antenna
HPBW/Horizontal :13.5° - 15.5°
HPBW/vertical :13° - 16°
 |
| Frequency Band |
ETSI: 802.11a: 5.470 to 5.725 GHz
USA: 802.11a: 5.725 to 5.825 GHz |
| Power Supply |
External Power Adapter : input 100~240Vac/50~60Hz , output 5.5V/2.5A
Power over Ethernet (802.3af), up to 100 meters of CAT 5 cable
POE Adapter, DC Injecter provided
POE port built-in on the PCB |
| Transmission Rates |
IEEE802.11b: 1/2/5.5/11Mbps
IEEE802.11g: 6/9/12/18/24/36/48/54MbpsI |
| Modulation Technology |
802.11a Orthogonal Frequency Division Multiplexing (OFDM)
802.11a Data Rate : 6, 9, 12, 18, 24, 36, 48, 54Mbps |
| Output Power |
54 Mbps @ 17dBm
48 Mbps @ 18dBm
36 Mbps @ 19 dBm
6, 9, 12, 18, 24 Mbps @ 20 dBm
36 Mbps @ 20 dBm
6, 9, 12, 18, 24 Mbps @ 20 dBm |
| RSSI |
6Mbps @ -95 dBm
9Mbps @ -90 dBm
12Mbps @ -88 dBm
18Mbps @ -86 dBm
24Mbps @ -82 dBm
36Mbps @ -79 dBm
48Mbps @ -73dBm
54Mbps @ -71dBm |
| Software |
Support Client Mode, AP Mode, Bridge Infrastructure, WDS Bridge Mode, Repeater Mode, WISP Router, AP Router modes
40MHz, 20MHz, 10MHz, and 5MHz Channel Width
Super Channels support
Super A mode support (Atheros Proprietary)
Turbo A mode support (Atheros Proprietary)
Site Survey and Signal Survey functions
Lock-to-AP Priority List
Multiple SSID and VLAN
Total, IP/MAC, and Application Bandwidth Control
8 WDS Entries
QoS (802.11e WMM)
WPA with PSK/TKIP/AES support, WPA2 support
Privacy Separator support
Firewall, Static Route, Virtual Server, DMZ, URL Control
Support adjustable output power
Comply with DFS II
152-bit WEP support (Atheros Proprietary)
ACK Timeout Adjustment
DHCP Server and Client
Wireless access control by MAC address (deny or accept)
HTTPS, HTTP, and Telnet Management
Firmware upgrade and configuration backup via Web
Bootloader Protection and Emergency Firmware Repair |
| Dimension |
Polarization : Linear, vertical |
| Certificate |
CE |
| Product Weight (g) |
1105 g |
Product Size
( L x W x H (mm) ) |
225 x 122 x 225 mm |
|
|
|
|
|
|
|
|
|
